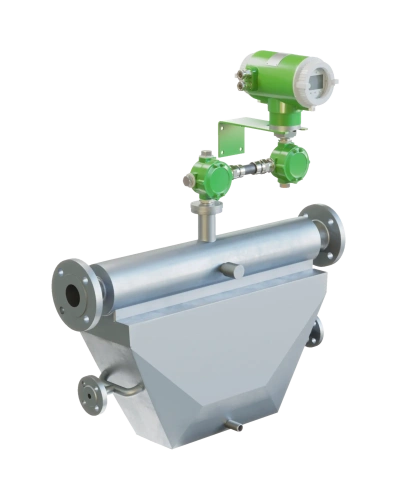

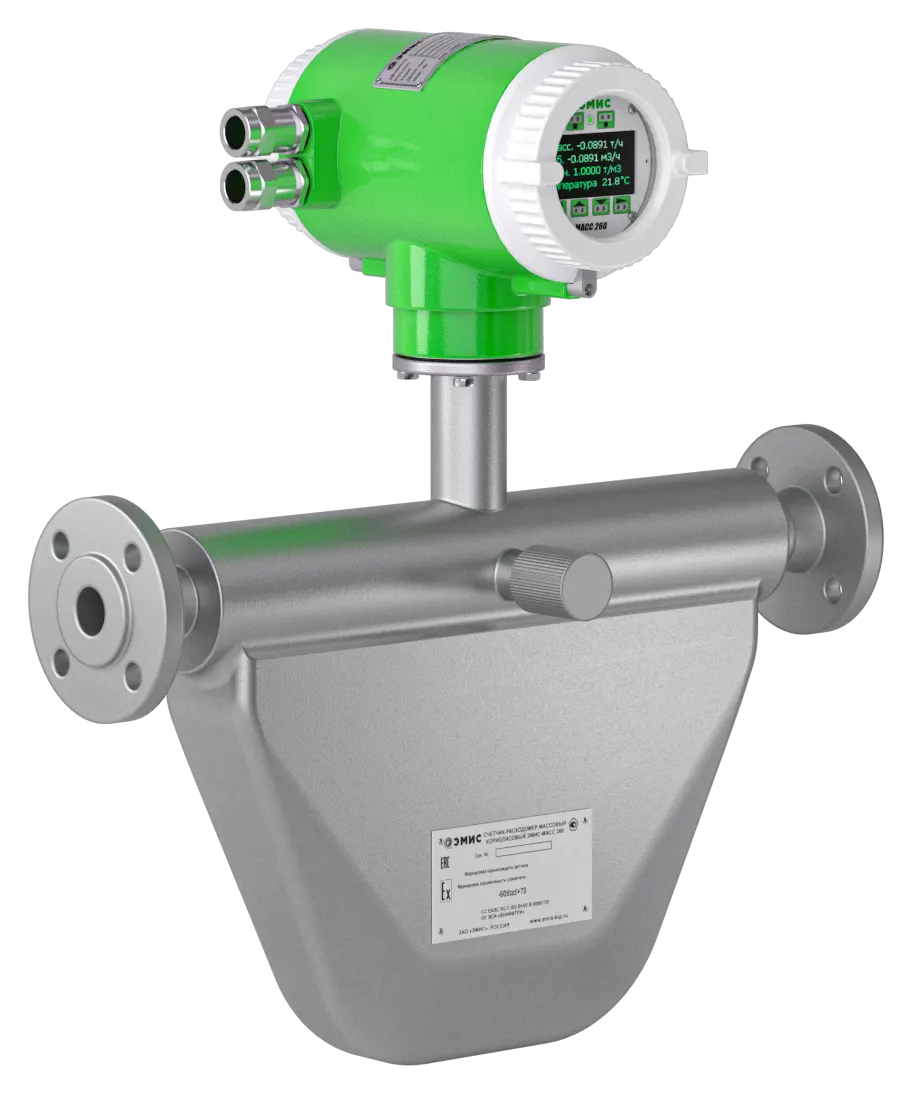

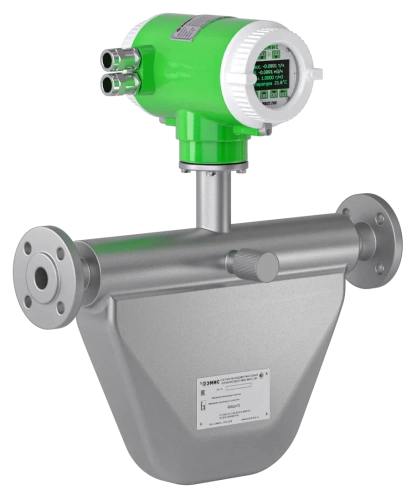

Compact Type EMIS-MASS 260 Coriolis Mass Flowmeter
The Compact Type EMIS-MASS 260 is designed specifically for applications involving small pipelines or installations with limited space. Its compact design ensures seamless integration without compromising on performance, delivering exceptional accuracy and long-term reliability.
Key Features & Advantages
- Compact Size: Ideal for installations with space constraints.
- Easy Installation: Can be mounted in any section of the pipeline with minimal effort.
- High Accuracy: Ensures precise measurement for critical applications.
- Vibration Resistance: Engineered to withstand industrial frequency vibrations, ensuring stable performance.
- Wide Temperature Range: Operates reliably in medium temperatures ranging from -196°C to 250°C.
The EMIS-MASS 260 is the perfect solution for industries requiring a compact, durable, and highly accurate flow measurement device.
The EMIS-MASS 260 series offers a range of compact Coriolis mass flowmeters designed to meet the diverse needs of industries, including food, pharmaceutical, and general industrial applications. With their precision engineering, modular design, and robust performance, these flowmeters ensure accurate and reliable measurement in even the most challenging environments.
Modifications
Compact design hygienic mass flow meter – EMIS-MASS 260 (food grade)
The food grade type EMIS-MASS 260 is specifically designed for measuring the volume and mass flow rate of food-grade mediums. It is widely used in the food and pharmaceutical industries, where hygiene and contamination prevention are critical. The flowmeter features a special aseptic clamp connection, allowing for easy disassembly, washing, and disinfection. Its design prevents liquid stagnation and minimizes the risk of contamination, ensuring compliance with strict industry standards.
Advantages & Benefits
- Aseptic Connection: Ensures hygienic operation and easy cleaning.
- High Accuracy: Delivers precise measurements for critical processes.
- Low Price: Cost-effective solution for food and pharmaceutical applications.
- Low Pressure Loss: Optimized design for efficient flow measurement.
- Vibration Resistance: Withstands industrial frequency vibrations for stable performance.
- Temperature of the measured medium: Operates reliably between -196°C and 250°C.

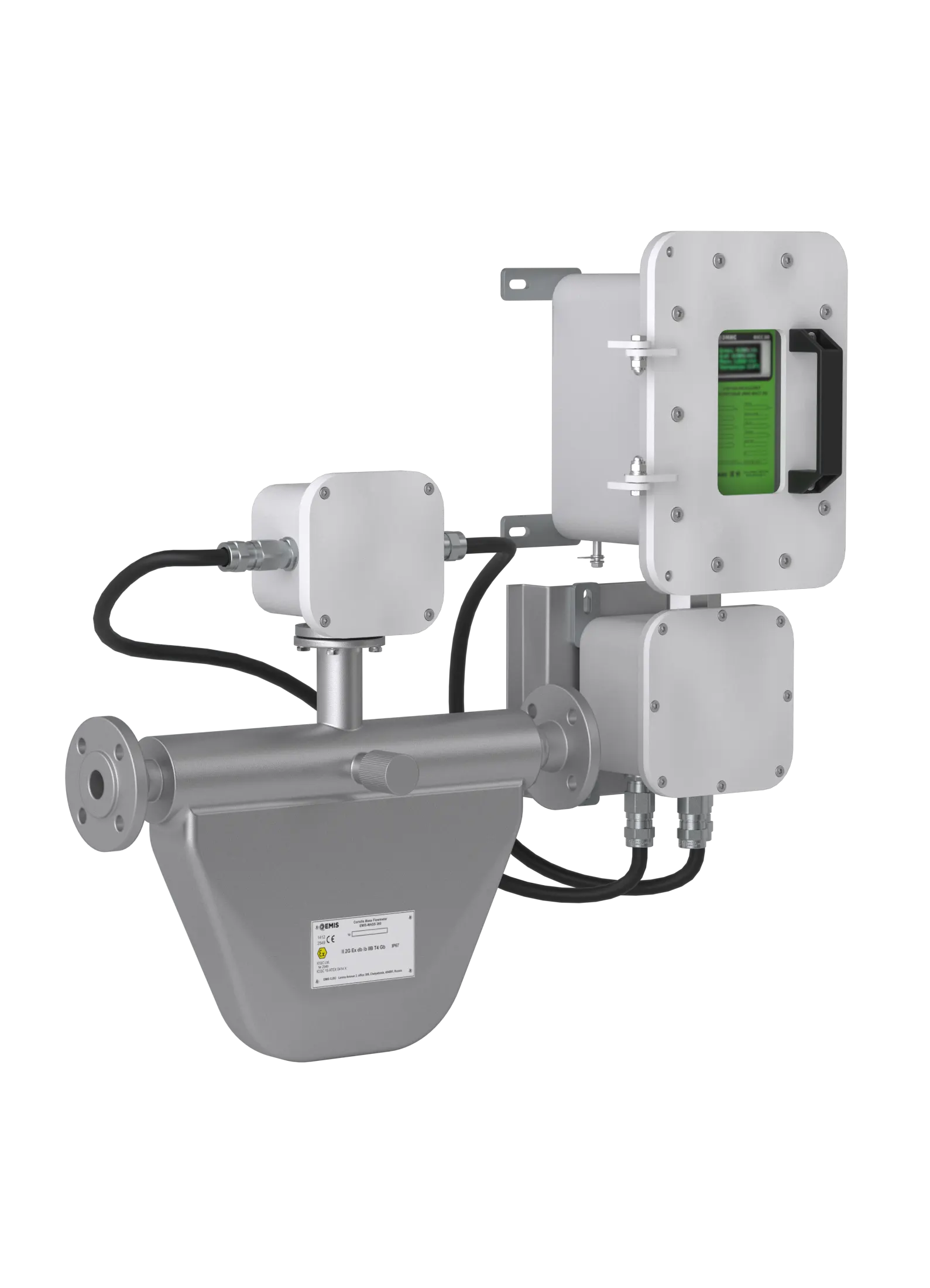

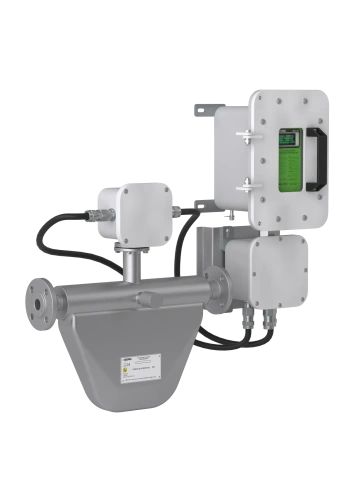

Compact Type Remote Mass Flowmeter – EMIS-MASS 260
The Remote Type EMIS-MASS 260 is designed for installations where the transmitter needs to be located away from the pipeline. A cable connects the transducer to the transmitter, with a maximum cable length of 100 meters, offering flexibility in installation while maintaining accurate and reliable performance.
Features & Benefits
- Remote Indication: Enables monitoring and control from a distance.
- Compact Size: Ideal for installations with limited space.
- Easy Installation: Can be mounted in any section of the pipeline.
- Vibration Resistance: Engineered to withstand industrial frequency vibrations.
- Wide Temperature Range: Operates in medium temperatures from -196°C to 250°C.
|
Measured medium
|
Liquid, Gas |
|
Nominal bore diameter, mm
|
10; 15; 25; 40; 50; 80; 100; 150; 200; 250 |
|
Flow type
|
Mass, Volume |
|
Process pressure, MPa
|
up to 25 |
|
Proccess temperature, °C
|
-196...+200 |
|
Ambient temperature, °С
|
-60...+70 |
|
Accuracy, %
|
Liquid ±0,1; ±0,15; ±0,2; ±0,25; ±0,5%; Gas ±0,35; ±0,4; ±0,45; ±0,5; ±0,75%; Temperature ±0,5; ±1 °C; Density ±0,5; ±1,0 kg/m³ |
|
Output signals
|
Pulse (passive/active) - NAMUR NA 01; Analog 4-20mA (passive/active) - NAMUR NE 43; Digital ModBus RTU with RS-485; Digital Ethernet with ModBus TCP/IP; Current 4-20mA with digital HART (passive) without additional error. |
|
Explosion protection type
|
Exi, Exd, mine config. |
|
Ingress protection
|
IP66/IP67 |
