High-Performance Gauge Pressure Transmitters: EMIS-BAR Series
Precisely Measure Gauge Pressure in Demanding Applications
The EMIS-BAR series of Gauge Pressure Transmitters delivers reliable and accurate measurement of pressure relative to atmospheric pressure. Engineered for robust performance, these transmitters utilize a sensitive single-crystal silicon diaphragm sensor with integrated piezoresistive elements. This sensor is exposed to the process medium on one side and atmospheric pressure on the reference side.
Enhanced Protection & Customization:
For applications involving aggressive media or harsh environments, select models incorporate process-isolating diaphragms and a fill fluid system. We offer flexibility in fill fluid selection and diaphragm material to ensure optimal compatibility with your specific process requirements. Detailed specifications for all options, including electronics and enclosures, are available in the comprehensive Operation Manual.
EMIS-BAR Series Modifications:

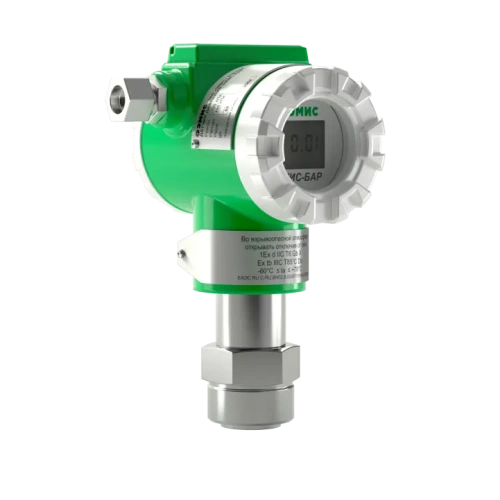

- EMIS-BAR 103: In-Line Mount process connection.
- EMIS-BAR 105: Traditional-mount process connection.
- EMIS-BAR 113: Features a Fully-Welded Diaphragm Seal.

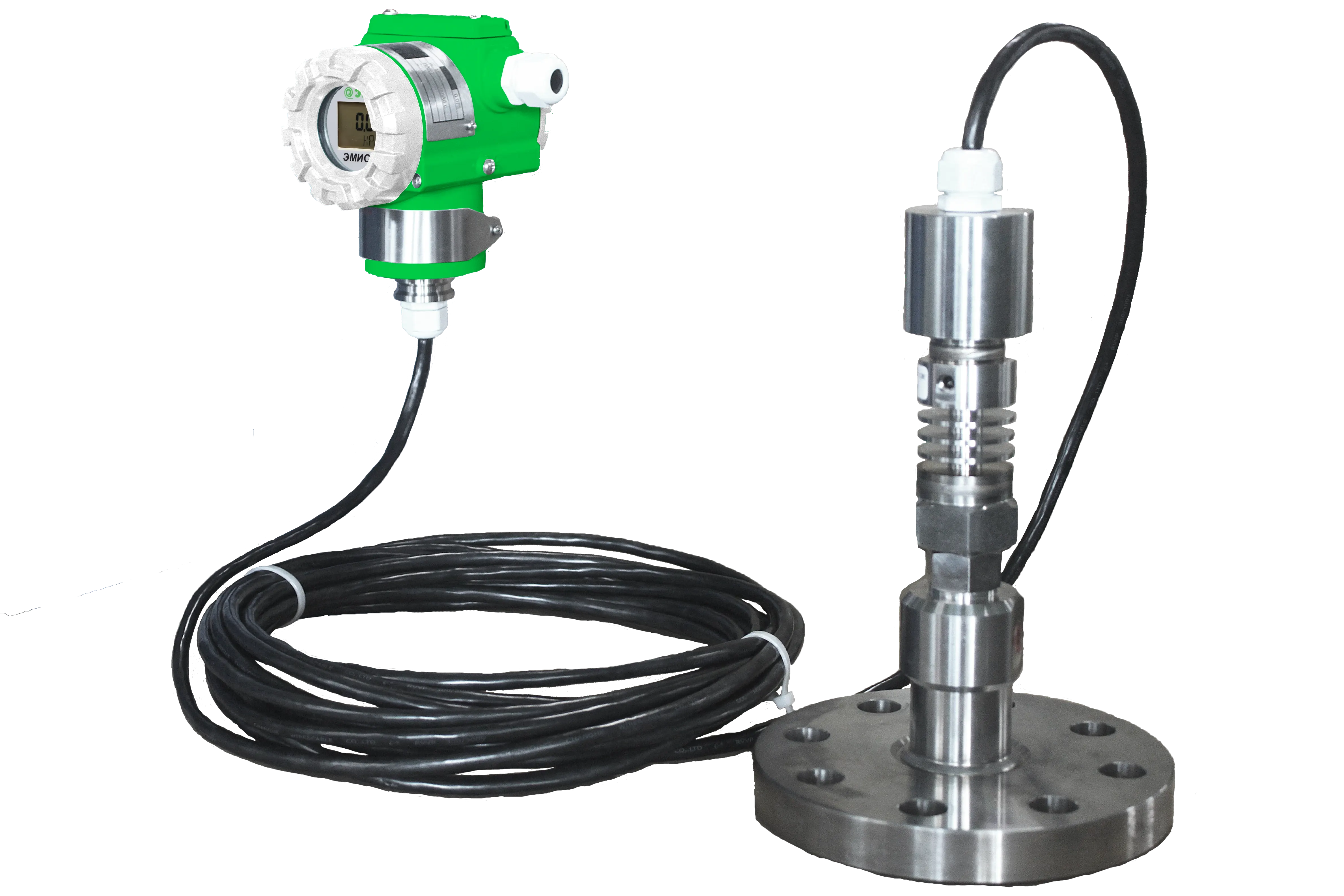

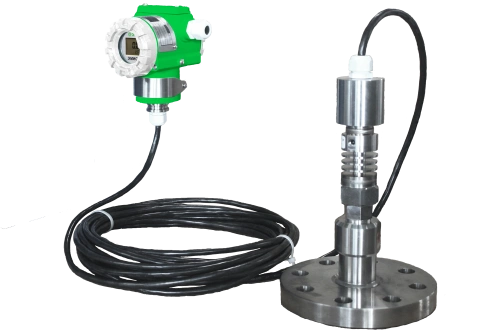

- EMIS-BAR 173: Equipped with a Remote Diaphragm Seal.
- EMIS-BAR 174: Incorporates a Remote Extended Diaphragm Seal.
Advanced Capabilities:
- Models EMIS-BAR 173 and 174 are engineered for extreme temperature environments, supporting measured media temperatures from -90°C to +400°C.
- Standard output is a robust 4-20mA analog signal utilizing two-wire current loop power.
- Seamless integration with plant control systems is enabled by the HART (Highway Addressable Remote Transducer) digital communication protocol, superimposed onto the 4-20mA signal without affecting its DC component.
- Installation requires a standard 250 Ω - 500 Ω loop load resistor per the HART protocol.
Request Your Technical & Commercial Proposal
To specify the optimal EMIS-BAR transmitter configuration for your application or to request a formal quotation:
- Contact our Technical Sales Team: +7 (351) 729-99-13
- Submit a Process Questionnaire: Provide detailed process conditions for a tailored technical and commercial offer.
Our instrumentation specialists are ready to assist you in selecting the ideal solution for your pressure measurement needs.
|
Measured medium
|
Liquid, Steam, Gas |
|
Measured range, MPa
|
0..69 |
|
Proccess temperature, °C
|
-40...+120 |
|
Ambient temperature, °С
|
-60...+85 |
|
Accuracy, %
|
±0,04; ±0,065; ±0,1; ±0,2; ±0,5; ±1,0 |
|
Output signals
|
4-20мА + HART with DD |
|
Explosion protection type
|
1Ex d IIC T6…T4 Gb X;<br> 1Ex d ia IIC T6…T4 Gb X;<br> 0Ex ia IIB T6…T4 Ga X;<br> 0Ex ia IIC T6…T4 Ga X;<br> PO Ex ia I Ma X;<br> PB Ex d I Mb X;<br> PB Ex d ia I Mb X |
|
Ingress protection
|
IP65, IP66, IP67, IP68 |
|
Calibration interval, years
|
6 |
|
Range adjustment
|
up tp 100:1 |
|
Proccess connection
|
In-Line Mount, Traditional-mount, with Remote Diaphragm seal, with Remote Extended Diaphragm Seal |
