Energy carrier metering skids EMIS-Esko 2210
Characteristics
Measured medium
—
Liquid, Steam, Gas
Nominal bore diameter, mm
—
15; 25; 32; 40; 50; 65; 80; 100; 125; 150; 200; 250; 300
Process pressure, MPa
—
1.6; 2.5; 4; 6.3; 16; 20; 25
Proccess temperature, °C
—
-60….+450
Accuracy, %
—
of mass flow rate and gas volume reduced to standard conditions: 1.0; 1.5; 2.5; 3. of steam mass: ±3; liquid mass: ±2 of thermal energy: ±4, ±5

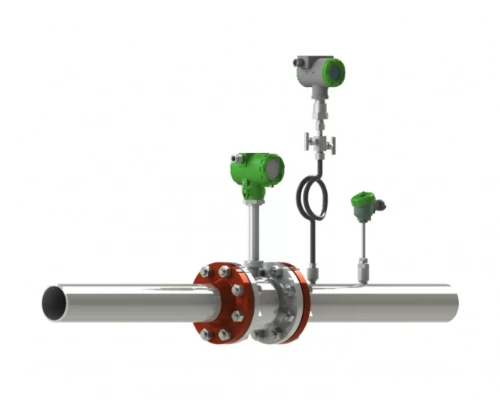

Energy carrier metering skids EMIS-Esko 2210
Energy carrier metering skids EMIS-Esko 2210
Designed for measuring volume, pressure, temperature, mass and volume flow of water, steam, gases and gas mixtures , heatenergy measuring in closed and open heat supply systems.
Field of application: measuring systems for metering, automated monitoring and control of processes at thermal, gas distribution stations, oil and gas production facilities, any industrial enterprises.
Key Features & Advantages
- Capable of measuring superheated, saturated, dry and wet steam.
- Remote GSM/GPRS wireless data transmission.
- Open list on flow, pressure, temperature transducers.
- Pressure transmitters replacement or repair, metrological diagnostics of the flow meter not stopping the medium flow.
- Calculation of flow rate, mass and volume of gases and gas mixtures reduced to standard conditions are carried out in accordance with GOST 30319.(2,3)-2015, GOST R 8.662-2009, ISO 20765-2, GOST R 8.740-2023, GOST 8.611-2013, GOST P 8.733-2011, GSSD MR 112-2003, GSSD MR 134-2007, GSSD MR 113-2003, GSSD MR 118-2005, GSSD MR 273-2018, GSSD MR 232-2014.
- Systems perform heat energy metering in accordance with the "Rules of commercial metering of heat energy, heat carrier", approved by the Government of the Russian Federation No. 1034 dated 18/11/2013 as amended and supplemented on February 13, 2019.
- Calculation of thermal-physical properties of water and water vapor is performed in accordance with GSSSD MR 147-2008.
Specifications
|
Measured medium
|
Liquid, Steam, Gas |
|
Nominal bore diameter, mm
|
15; 25; 32; 40; 50; 65; 80; 100; 125; 150; 200; 250; 300 |
|
Process pressure, MPa
|
1.6; 2.5; 4; 6.3; 16; 20; 25 |
|
Proccess temperature, °C
|
-60….+450 |
|
Accuracy, %
|
of mass flow rate and gas volume reduced to standard conditions: 1.0; 1.5; 2.5; 3. of steam mass: ±3; liquid mass: ±2 of thermal energy: ±4, ±5 |
|
Output signals
|
RS-232/CAN-BUS/RS-485, GSM/GPRS/Ethernet |
|
Ingress protection
|
min. IP65 for field equipment; min. IP20 for computing and functional equipment. |
|
Calibration interval, years
|
4 |
