Energy carrier metering skids based on orifice plates EMIS-Esko 2210

Energy carrier metering skids based on diaphragms EMIS-Esko 2210

EMIS-Esco 2210 using orifice plates is a measuring instrument and has an approved type description. To perform measurements in accordance with Federal Law No. 102 dated 26/06/2008.

«On Ensuring Uniformity of Measurements» as well as GOST and orders of Rosstandart, it is required to develop and certify a measurement methodology for specific operating conditions.

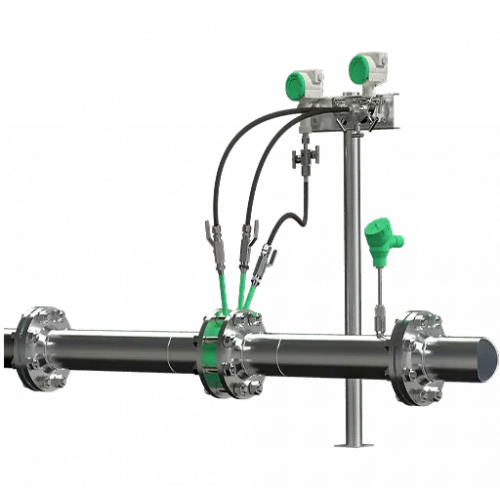

The system consists of an orifice plate (diaphragm), differential and absolute pressure transmitters.

Diaphragms are designed for flow measurement using the differential pressure method.

Key Features & Advantages

• Measurements of superheated and saturated steam, dry and wet steam.
• Open list of pressure, temperature and type of orifice plates according to GOST 8.586-2005.
• Calculation of flow rate, mass and volume of gases and gas mixtures, reduced to standard conditions, in accordance with GOST 30319.(2,3)-2015, GOST R 8.662- 2009, ISO 20765-2, GSSSD MR 112-2003, GSSSD MR 134-2007, GSSD MR 113-2003, MI 3563-2016, GSSD MR 118-2005, GSSD MR 273-2018, GSSD MR 232-2014.
• Heat energy metering in accordance with the "Rules of commercial metering of heat energy, heat carrier", approved by the Resolution of the Government of the Russian Federation No. 1034 dated 18/11/2013 as amended on 13/02/2019.
• Calculation of thermal-physical properties of water and water vapor is performed in accordance with GSSSD MR 147-2008.
• 2008 Zero-spill verification. Only a geometric dimension check every 1 year is required.
