EMIS-MASS 260 for low flow
Characteristics
Measured medium
—
Liquid
Nominal bore diameter, mm
—
10; 15;
Flow type
—
Mass, Volume
Process pressure, MPa
—
up to 25
Proccess temperature, °C
—
-60...+200
EMIS-MASS 260 for low flow

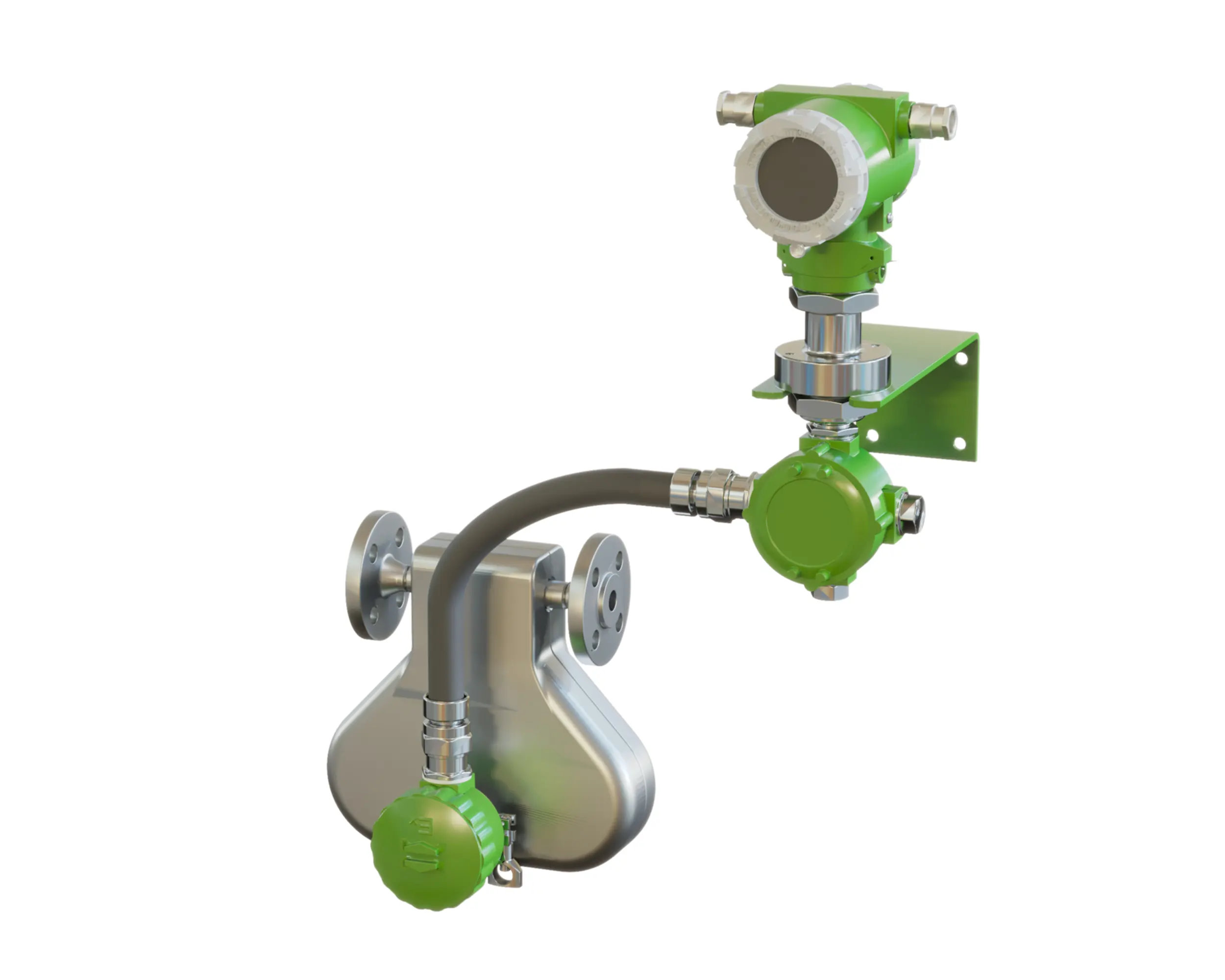

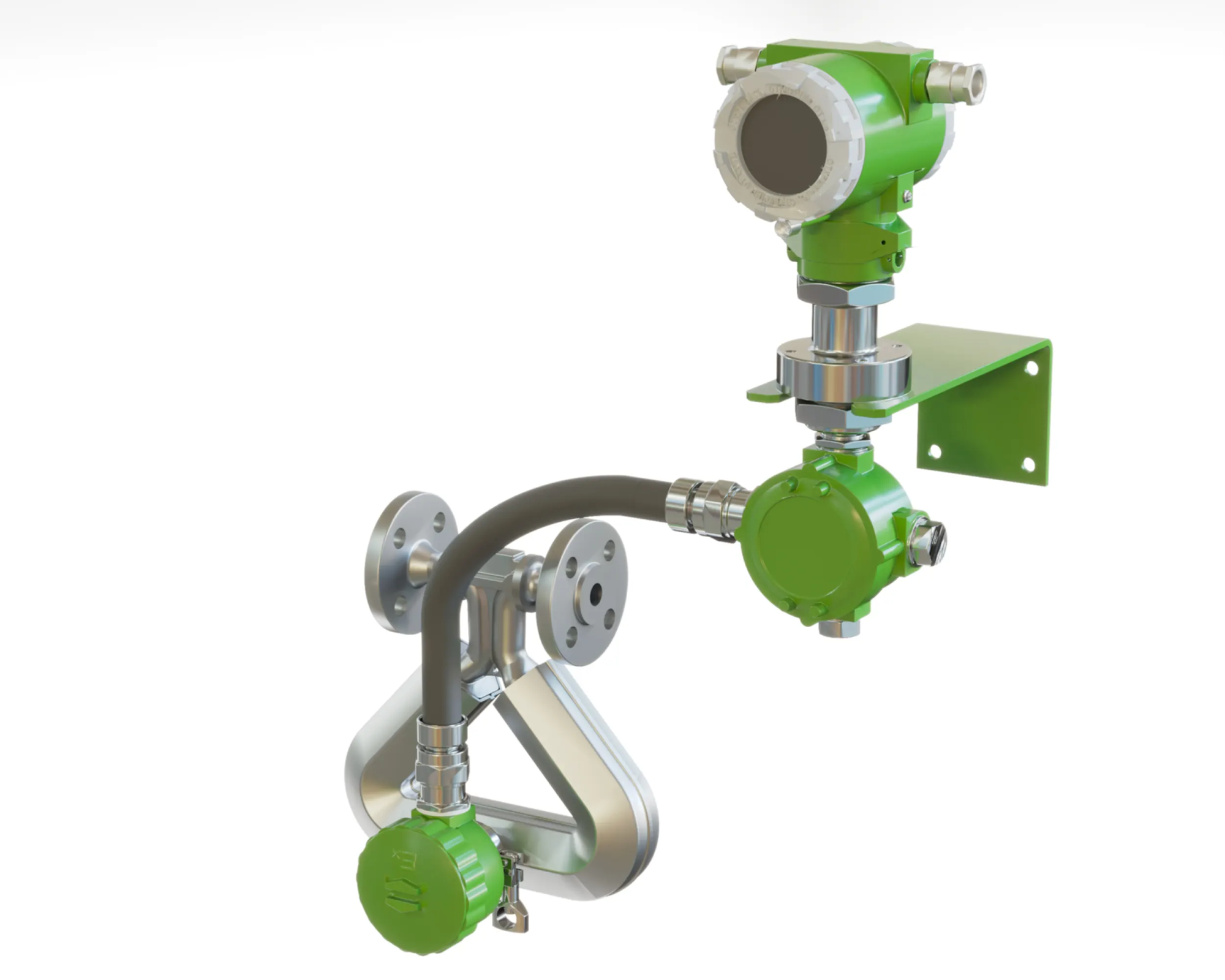

Mass Coriolis Flow Meters EMIS-MASS 260 for low flow (FRd3 in the Order Card)
The EMIS-MASS 260 mass Coriolis flow meters, in their special design (FRd3 in the order card), feature a flow tube diameter of 3 mm. These meters are specifically designed for use in dosing systems and are widely applied in the chemical, cosmetic, pharmaceutical, and food industries — particularly in processes that require precise measurement within small flow ranges.
Specifications
|
Measured medium
|
Liquid |
|
Nominal bore diameter, mm
|
10; 15; |
|
Flow type
|
Mass, Volume |
|
Process pressure, MPa
|
up to 25 |
|
Proccess temperature, °C
|
-60...+200 |
|
Ambient temperature, °С
|
-60...+70 |
|
Accuracy, %
|
0.1; 0.15; 0.2; 0.25; 0.5 |
|
Output signals
|
Pulse (passive/active) - NAMUR NA 01; Analog 4-20mA (passive/active) - NAMUR NE 43; Digital ModBus RTU with RS-485; Digital Ethernet with ModBus TCP/IP; Current 4-20mA with digital HART (passive) without additional error. |
|
Explosion protection type
|
Exi, Exd, mine config. |
|
Ingress protection
|
IP66/IP67 |
|
Calibration interval, years
|
5 |
