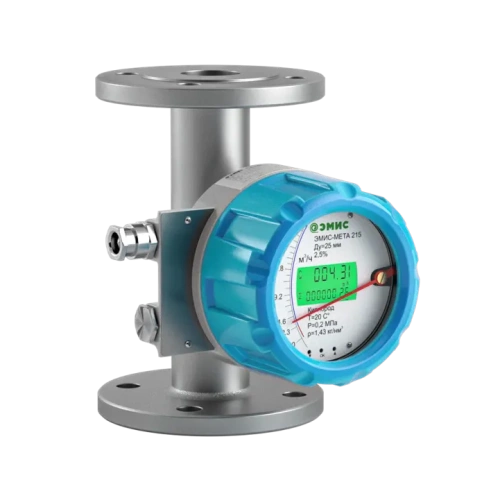

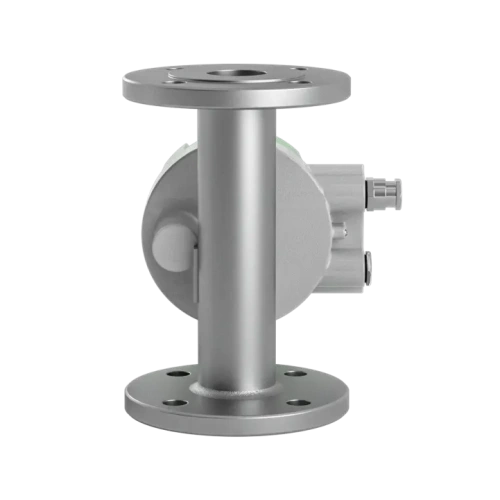

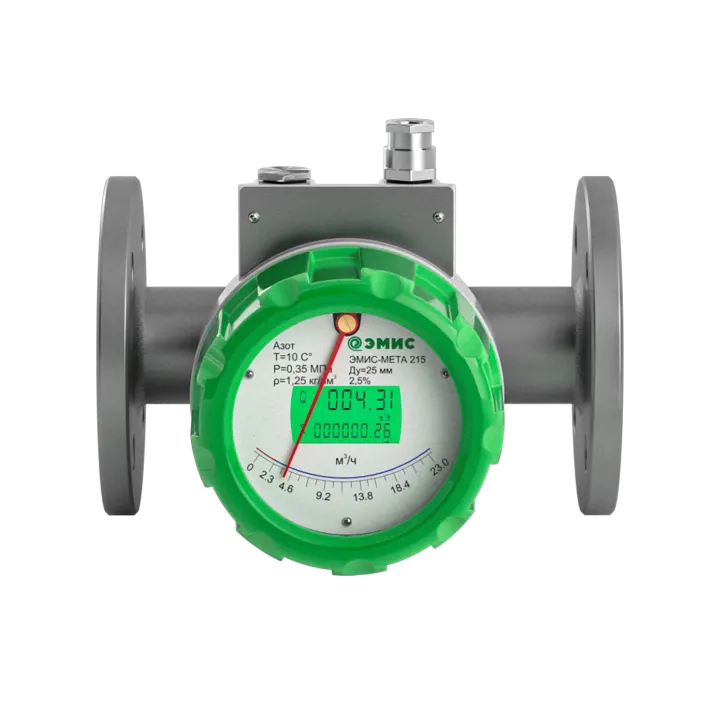

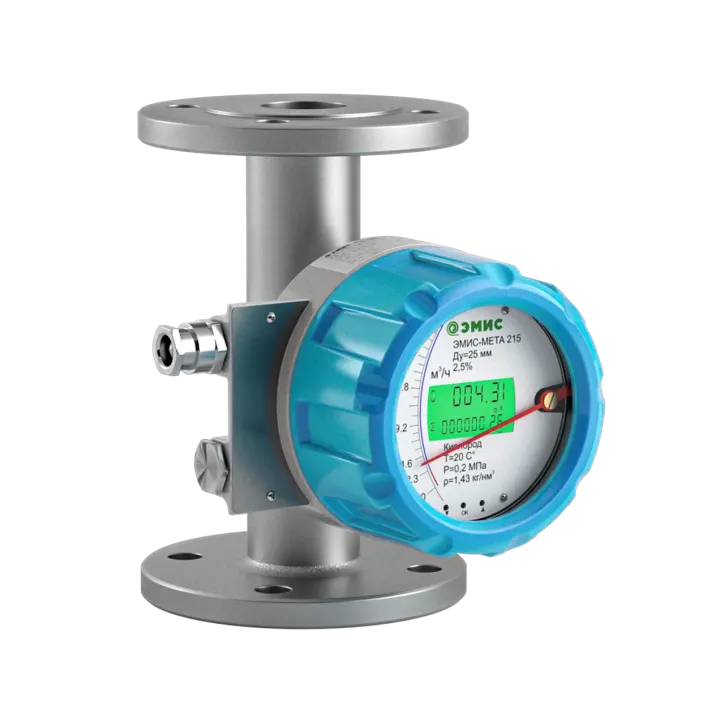

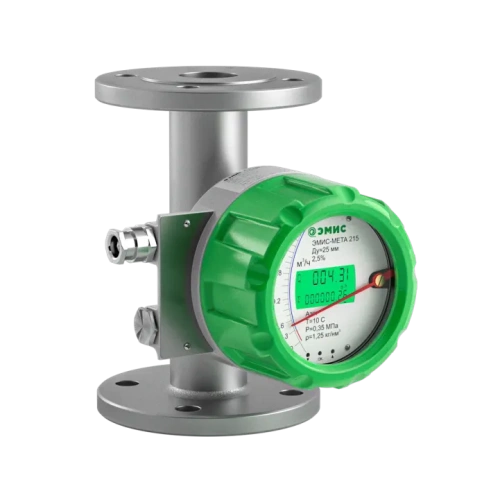

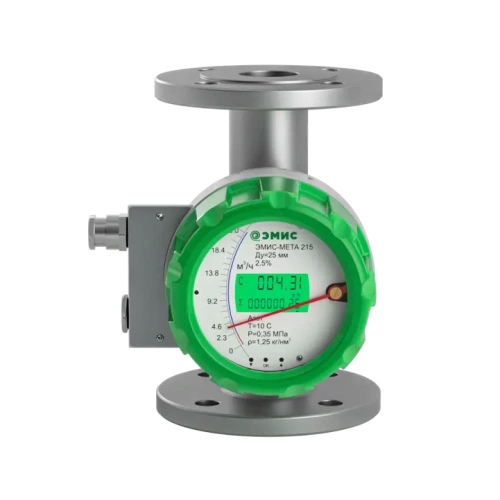

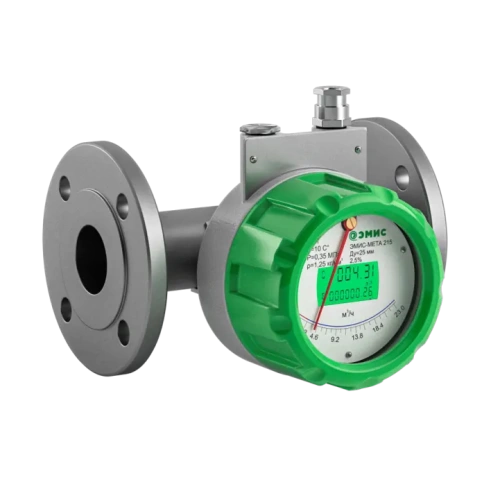

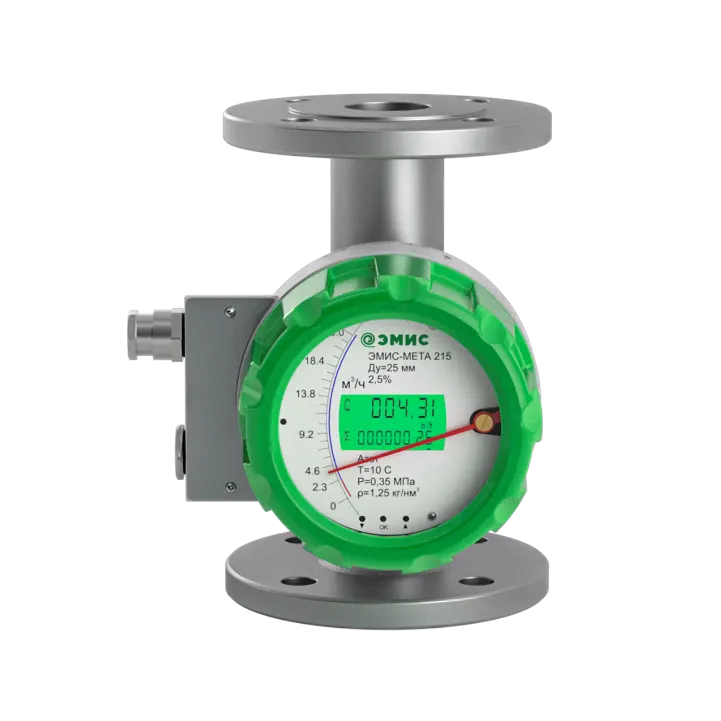

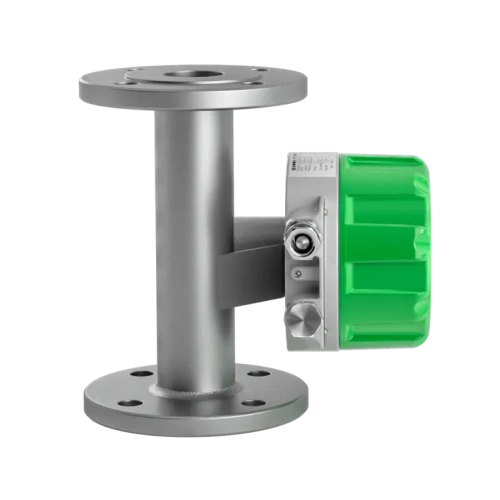

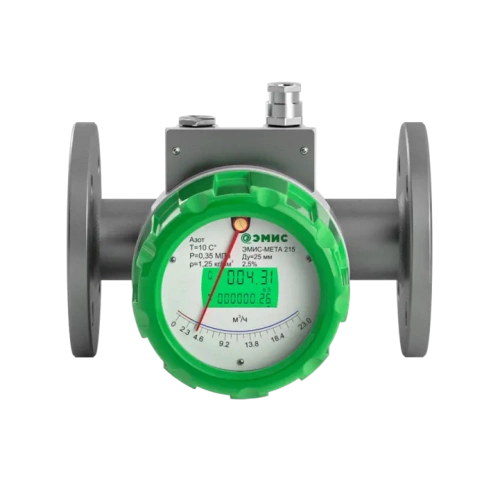

EMIS-META 215 Metal Rotameter
The EMIS-META 215 is a high-accuracy metal rotameter designed for measuring the flow rate of gases, liquids, and steam. With its robust construction, advanced features, and versatile configurations, it is suitable for a wide range of industries, including chemical, food, and process engineering.
Applications
- Chemical Industry: Ideal for measuring corrosive liquids and gases.
- Food Industry: Certified for food-grade applications.
- Process Engineering: Suitable for steam, gas, and liquid flow measurement.
- Specialized Environments: Optional PTFE lining extends its use to highly corrosive mediums.
Key Features & Advantages
- High Accuracy: Ensures precise flow measurement with an accuracy of up to 1.5%.
- Durable Construction: Made of stainless steel, with optional PTFE lining for chemically corrosive mediums.
- Versatile Output Options: Converts flow values to a standard 4–20 mA analog signal or a digital signal based on the HART protocol.
- Process Safety: Equipped with limit warnings to enhance operational safety.
- Ease of Installation: Simple design ensures quick setup and long-term reliability.
- Food Industry Certification: Certified for use in food applications, meeting industry standards.
Special configurations
1. Version with heating jacket
For applications where maintaining the medium's temperature is critical, the EMIS-META 215 can be equipped with a heating jacket. This jacket allows the supply of hot oil or steam to ensure the medium's temperature remains stable performance as it passes through the rotameter.
2. Corrosion-resistant version
The EMIS-META 215 is available in an anti-corrosion configuration for chemically aggressive mediums. The wetted parts feature a special PTFE lining, making it ideal for handling corrosive liquids, including those containing hydrogen sulfide.

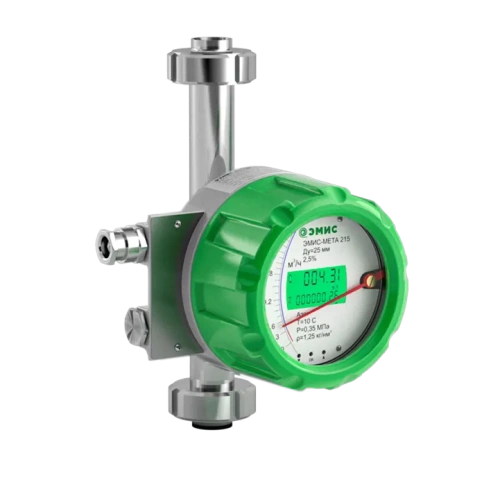

3. Food-grade version
The food-grade version of the EMIS-META 215 is constructed entirely of stainless steel and certified for use in the food industry. It is suitable for measuring the flow of gases, liquids, and steam in food processing applications.
4. Version with Limit Switches
For applications requiring additional safety, the rotameter can be equipped with one or two limit switches. This version is available only without an output signal and LCD display.
How to Order
To purchase the EMIS-META 215 metal rotameter, please follow these steps:
- Contact Us: Call us on +7 (351) 729-99-13.
- Fill Out a Questionnaire: Provide a detailed description of your process requirements.
- Receive a Proposal: Our specialists will provide a comprehensive technical and commercial offer tailored to your needs.
|
Measured medium
|
Liquid, Gas |
|
Nominal bore diameter, mm
|
15; 25; 40; 50; 80; 100; 150 |
|
Flow type
|
Volume |
|
Process pressure, MPa
|
up to 32 |
|
Proccess temperature, °C
|
Standard config. -40...+100 °C; High-temperature config. -80...+250 °C; Special config. -40...+420 °C |
|
Ambient temperature, °С
|
–60 ... +70 |
|
Accuracy, %
|
±1; ±1.5; ±2.5; ±4 |
|
Output signals
|
LCD display; Current 4-20 mA; HART; Up to 2 limit switches |
|
Explosion protection type
|
1Ex ib IIB/IIC T1/T2/T3/T4 Gb X 1Ex db IIB/IIC T1/T2/T3/T4 Gb X II Gb c T1/T2/T3/T4 X |
|
Ingress protection
|
IP 65; IP 67 |
